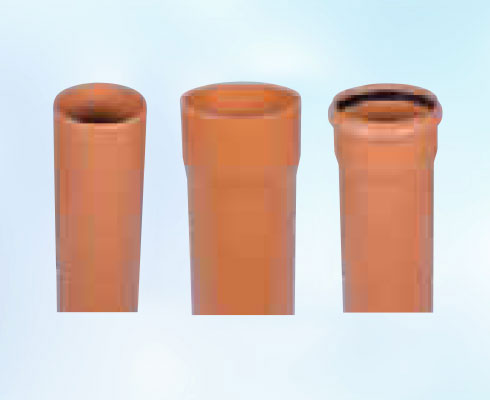

Item Code | Nominal Size DN/OD |
Standard | Joints | Type | Mean Outside Dia(D1) |
Wall Thickness | ||
min | max | min | max | |||||
FDRT 3X5.8 | 82mm | BS EN 1329-1 | R/R | SN4 | 82 | 82.3 | 3 | 3.5 |
FDRT 4X5.8 | 110 mm | BS EN 1401-1 | R/R | SN4 | 110 | 110.3 | 3.2 | 3.8 |
FDRT 4X3.2X5.85NB | 110 mm | BS EN 1401-1 | R/R | SN8 | 110 | 110.3 | 3.2 | 3.8 |
FDRT 6X5.85N4 | 160 mm | BS EN 1401-1 | R/R | SN4 | 160 | 160.4 | 4 | 4.6 |
FDRT 6X4.7X5.85NB | 160 mm | BS EN 1401-1 | R/R | SN8 | 160 | 160.4 | 4.7 | 5.4 |
FDRT 8X5.85N4 | 200 mm | BS EN 1401-1 | R/R | SN4 | 200 | 200.5 | 4.9 | 5.6 |
FDRT 8X5.9XS.85NB | 200 mm | BS EN 1401-1 | R/R | SN8 | 200 | 200.5 | 5.9 | 6.7 |
FDRT 10X5.85N4 | 250 mm | BS EN 1401-1 | R/R | SN4 | 250 | 250.5 | 6.2 | 7.1 |
FDRT 10X5.85NB | 250 mm | BS EN 1401-1 | R/R | SN8 | 250 | 250.5 | 7.3 | 8.3 |
FDPT 12X5.85N4 | 315 mm | BS EN 1401-1 | P/E | SN4 | 315 | 315.6 | 7.7 | 8.7 |
FDPT 12X5.85NB | 315 mm | BS EN 1401-1 | R/R | SN4 | 315 | 315.6 | 7.7 | 8.7 |
FDRT 12X5.85NB | 315 mm | BS EN 1401-1 | R/R | SN8 | 315 | 315.6 | 9.2 | 10.4 |
FDPT 16X65N4 | 400 mm | BS EN 1401-1 | P/E | SN4 | 400 | 400.7 | 9.8 | 11 |
FDRT 16X5.85N4 | 400 mm | BS EN 1401-1 | R/R | SN4 | 400 | 400.7 | 9.8 | 11 |
FDRT 16X5.85NB | 400 mm | BS EN 1401-1 | R/R | SN8 | 400 | 400.7 | 11.7 | 13.1 |
Size | D | DI | L |
110mm (4") | 110 | - | 40 |
160mm (6") | 160 | - | 60 |
200mm (8") | 200 | - | 61 |
D | D1 | H | L |
110 | 190 | 110 | 45 |
D | D1 | H | L |
110 | 160 | 290 | 61.5 |
D | D1 | D2 | H | L |
110 | 50 | 160 | 268 | 51 |
Size | D | DI | L |
110X75mm (4X2 1/2") | 110 | - | 40 |
110X82mm (4X3") | 110 | - | 43 |
160X110mm (6X4") | 200 | - | 60 |
Size | D | DI | L |
110mm (4") | 110 | 110 | 85 |
Size | D | DI | L |
110mm (4") | 110 | - | 40 |
160mm (6") | 160 | - | 60 |
200mm (8") | 200 | - | 61 |
Size | D | DI | L |
110mm (4") | 110 | - | 40 |
160mm (6") | 160 | - | 60 |
200mm (8") | 200 | - | 61 |
Size | D | DI | L |
110mm (4") | 110 | - | 40 |
160mm (6") | 160 | - | 60 |
200mm (8") | 200 | - | 61 |
Size | D | DI | L |
110mm (4") | 110 | 110 | 40 |
Size | D | DI | L |
110mm (4") | 110 | 110 | 48 |
Size | D | DI | L |
110mm (4") | 110 | - | 40 |
160mm (6") | 160 | - | 60 |
200mm (8") | 200 | - | 61 |
Size | D | DI | L |
110mm (4") | 110 | - | 40 |
