PP-R / PP-RCT PIPES & FITTINGS

The Main benefits of MPI PPR pipe system are:

Long service Life.
Resistance to corrosion.
Higher resistance to internal pressure.
Taste and odor neutral.
Hygienic and meets health requirements for water contact application.
Good chemical resistance.
Low thermal conductivity.
Non toxic.
Lower weight & Excellent Weld-ability & Easy installation.
Vibration and noise reduction.
Low fow resistance.
Higher impact strength.

The MPI PPR pipe system is developed and manufactured within an ISO 9001 quality assurance system and complies with the DIN 8077/8078 and EN ISO 15874 standards.

Standard Pipe: Standard Pipe is the conventional mono layer pipe as mentioned in the standards DIN 8077/8078 and EN ISO 15874. PP-R pipe from 20 mm to 160 mm in SDR 6 & SDR 7.4 PP-RCT pipe from 20 mm to 160 mm in SDR 7.4, 20 mm to 110 mm in SDR 9 & 160 mm in SDR 11. Thermal expansion factor 0.15 mm /m /m.K

Fiber Pipe: Fiber pipe is a three layer pipe of which the middle layer is reinforced with glass fber flled PP-R material. The outer& inner layer of the pipe is of normal PP-R material.PP-R / PP-R GF / PP-R pipe from 20 mm to 160 mm inSDR 6 & SDR 7.4

Product Code	Size mm	Packing unit Nos.	Outer Diameter (d)mm	Wall Thickness (s)mm	InnerDiameter (d1)mm	WaterContent l/ml/m
A20X3.4 SD6	20 x 3.4	25	20	3.4	13.2	0.137
A25X4.2 SD6	25 x 4.2	25	25	4.2	16.6	0.216
A32X5.4 SD6	32 x 5.4	10	32	5.4	21.2	0.353
A40X6.7 SD6	40 x 6.7	10	40	6.7	26.6	0.555
A50X8.3 SD6	50 x 8.3	5	50	8.3	33.4	0.876
A63X10.5 SD6	63 x 10.5	5	63	10.5	42.0	1.385
A75X12.5 SD6	75 x 12.5	5	75	12.5	50.0	1.963
A90X15.0 SD6	90 x 15.0	3	90	15	60.0	2.826
A110X18.3 SD6	110 x 18.3	2	110	18.3	73.4	4.229
A160X26.6 SD6	160 x 26.6	1	160	26.6	106.8	8.954

Product Code	Size mm	Packing unit Nos.	Outer Diameter (d) mm	Wall Thickness (s) mm	Inner Diameter (d1) mm	Water Content l/m l/m
AGF20X3.4 SD6	20 x 3.4	25	20	3.4	13.2	0.137
AGF25X4.2 SD6	25 x 4.2	25	25	4.2	16.6	0.216
AGF32X5.4 SD6	32 x 5.4	10	32	5.4	21.2	0.353
AGF40X6.7 SD6	40 x 6.7	10	40	6.7	26.6	0.555
AGF50X8.3 SD6	50 x 8.3	5	50	8.3	33.4	0.876
AGF63X10.5 SD6	63 x 10.5	5	63	10.5	42.0	1.385
AGF75X12.5 SD6	75 x 12.5	5	75	12.5	50.0	1.963
AGF90X15.0 SD6	90 x 15.0	3	90	15	60.0	2.826
AGF110X18.3 SD6	110 x 18.3	2	110	18.3	73.4	4.229
AGF160X26.6 SD6	160 x 26.6	1	160	26.6	106.8	8.954

Product Code	Size mm	Packing unit Nos.	Outer Diameter (d) mm	Wall Thickness (s) mm	Inner Diameter (d1) mm	Water Content l/m l/m
ACT20X2.3 SD9	20 x 2.3	25	20	2.3	15.4	0.186
ACT25X2.8 SD9	25 x 2.8	25	25	2.8	19.4	0.295
ACT32X3.6 SD9	32 x 3.6	10	32	3.6	24.8	0.483
ACT40X4.5 SD9	40 x 4.5	10	40	4.5	31.0	0.754
ACT50X5.6 SD9	50 x 5.6	5	50	5.6	38.8	1.182
ACT63X7.1 SD9	63 x 7.1	5	63	7.1	48.8	1.869
ACT75X8.4 SD9	75 x 8.4	5	75	8.4	58.2	2.659
ACT90X10.1 SD9	90 x 10.1	3	90	10.1	69.8	3.825
ACT110X12.3 SD9	110 x 12.3	2	110	12.3	85.4	5.725

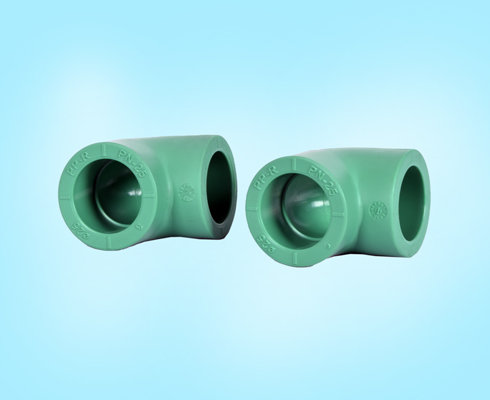

CODE	d	D	L	Z	Pack	Weight(gms)
APE9020	20	28.05	39.03	10.3	10 pcs	16
APE9025	25	35.05	46.28	12.55	10 pcs	25
APE9032	32	44.3	56.15	15.8	5 pcs	45
APE9040	40	55.45	68.23	19.8	5 pcs	83
APE9050	50	69.8	83.8	25	5 pcs	160
APE9063	63	87.6	103	31.5	1 pc	294
APE9075	75	100	119.5	38.3	1 pc	447
APE9090	90	119.6	140.8	45.3	1 pc	715
APE90110	110	147.3	170.65	55.3	1 pc	1285

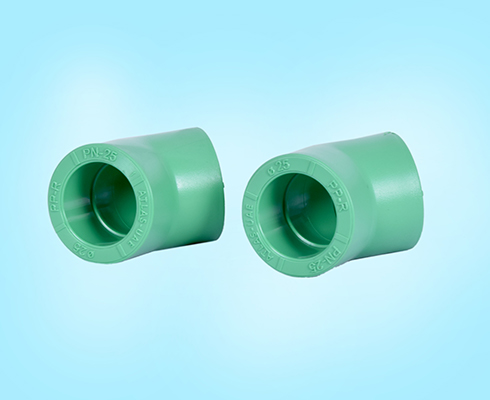

CODE	d	D	L	Z	Pack	Weight (gms)
APE4520	20	28.05	19.2	4.5	10 pcs	13
APE4525	25	35.05	21.5	5.3	10 pcs	20
APE4532	32	44.3	25	6.8	5 pcs	35
APE4540	40	55.45	29.5	8.8	5 pcs	65
APE4550	50	69.5	34.5	10.8	5 pcs	120
APE4563	63	87.7	41	13.5	1 pc	225
APE4575	75	100	47.5	16.3	1 pc	327
APE4590	90	119.6	55	19.3	1 pc	517
APE45110	110	147.3	65	23.3	1 pc	975

CODE Male Sock	d et -Tra	D nsitio	L n	Z	Pack	Weight (gms)
APMS20X0.5	20x1/2	37.8	56	41.3	10 pcs	75
APMS20X0.75	20x3/4	37.8	57	42.3	10 pcs	81
APMS25X0.5	25x1/2	38.8	56	39.8	10 pcs	77
APMS25X0.75	25x3/4	36.8	57	40.8	10 pcs	82
APMS32X0.5	32x1/2	44.3	60.5	42.3	5 pcs	85
APMS32X0.75	32x3/4	44.3	59.8	41.6	5 pcs	89

CODE	DESCRiPTiOn	SPECiaLiTy

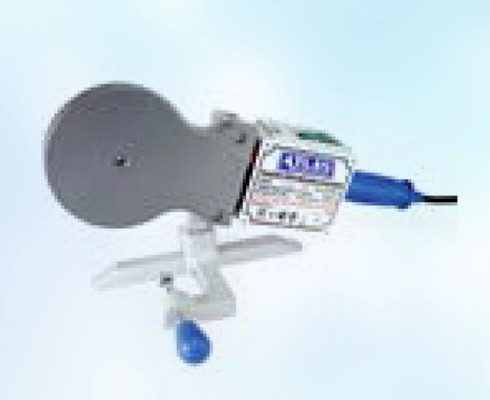

SET (EXTRA)	PPRC WELDING MACHINE SET (20-40mm socket)	750+750 watt
MANUAL	50 - 160 MM BUTT WELDING	Manual
ONLY (BIGGEST)	ONLY BIG WELDING MACHINE	1200+1200 watt

CODE	d	D	L	Z	Pack	Weight(gms)
APS20	20	28.05	32	2.6	10 pcs	10
APS25	25	34.5	35.5	3.1	10 pcs	15
APS32	32	44.3	39.4	3	5 pcs	28
APS40	40	55.5	46	4.6	5 pcs	52
APS50	50	69.5	50.4	3	5 pcs	86
APS63	63	88	60	4.6	1 pc	160
APS75	75	100	66.4	4	1 pc	215
APS90	90	119.6	76.4	5	1 pc	350
APS110	110	147.3	88.4	5	1 pc	615

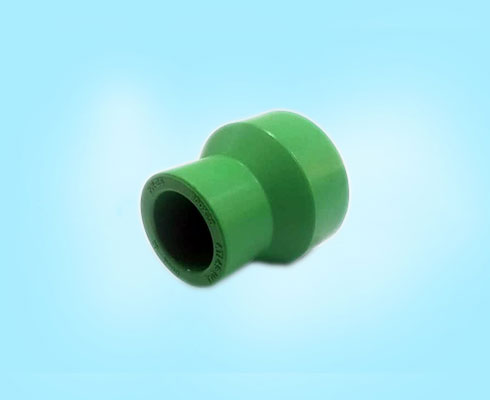

CODE	d	D	L	Z	Pack	Weight(gms)
APR25X20	25x20	25.2	38	4.8	10 pcs	11
APR32X20	32x20	32.15	41.2	8	5 pcs	16
APR32X25	32x25	32.15	42.7	8	5 pcs	20
APR40X20	40x20	40.15	45.7	10	5 pcs	25
APR40X25	40x25	40.15	47.2	10	5 pcs	29
APR40X32	40x32	40.15	49.2	10	5 pcs	36
APR50X20	50x20	50.2	51.2	12.5	5 pcs	42
APR50X25	50x25	50.2	52.7	12.5	5 pcs	46
APR50X32	50x32	50.2	54.7	12.5	5 pcs	52
APR50X40	50x40	50.2	57.2	12.5	5 pcs	66
APR63X20	63x20	63.2	58.4	15.5	1 pc	77
APR63X25	63x25	63.2	59.9	15.5	1 pc	80
APR63X32	63x32	63.2	61.9	15.5	1 pc	86
APR63X40	63x40	63.2	64.4	15.5	1 pc	97
APR63X50	63x50	63.2	67.4	15.5	1 pc	121
APR75X40	75x40	75.25	71.2	18.5	1 pc	129
APR75X50	75x50	75.25	74.2	18.5	1 pc	150
APR75X63	75x63	75.25	78.2	18.5	1 pc	194
APR90X50	90x50	90.3	82.7	22.5	1 pc	221
APR90X63	90x63	90.3	86.7	22.5	1 pc	260
APR90X75	90x75	90.3	90.2	22.5	1 pc	288
APR110X63	110x63	110.3	97.7	27.5	1 pc	394
APR110X75	110x75	110.3	101.2	27.5	1 pc	420
APR110X90	110x90	110.3	105.7	27.5	1 pc	500

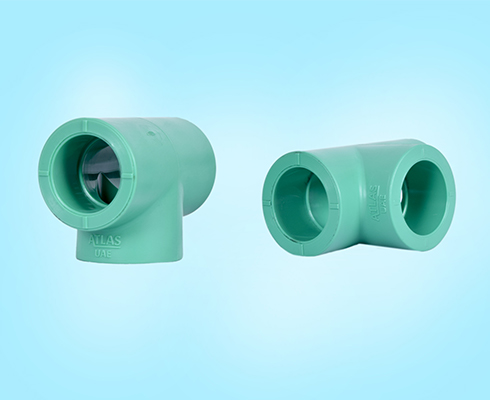

CODE	d	D	L	Z	Pack	Weight(gms)
APT20	20	28.05	51	10.8	10 pcs	20
APT25	25	35.05	60	10.8	10 pcs	32
APT32	32	44.3	69	16.3	5 pcs	57
APT40	40	55.5	82	20.3	5 pcs	107
APT50	50	69.3	98	25.3	5 pcs	189
APT63	63	87.7	119	31.8	1 pc	365
APT75	75	99.6	138	37.8	1 pc	515
APT90	90	119.6	162	45.3	1 pc	862
APT110	110	146.7	184	54.8	1 pc	1496

CODE	d	D	L	Z	Pack	Weight(gms)
APRT20X25X20	20 X 25 X 20	35.05	58	12.8	10 pcs	40
APRT25X20X20	25 X 20 X 20	35.05	58	12.8	10 pcs	40
APRT25X20	25 X 20 X 25	35.05	58	12.8	10 pcs	35
APRT32X20	32 X 20 X 32	44.3	69	16.3	5 pcs	52
APRT25X32	32 X 25 X 25	44.3	69	16.3	5 pcs	70
APRT32X25	32 X 25 X 32	44.3	69	16.3	5 pcs	64
APRT40X20	40 X 20 X 40	55.5	82	20.3	5 pcs	97
APRT40X25	40 X 25 X 40	55.5	82	20.3	5 pcs	97
APRT40X25	40 X 25 X 40	55.5	82	20.3	5 pcs	97
APRT40X32	40 X 32 X 40	55.5	82	20.3	5 pcs	100






APRT50X20	50 X 20 X 50	69.5	98	25.3	5 pcs	172
APRT50X20	50 X 20 X 50	69.5	98	25.3	5 pcs	172
APRT50X25	50 X 25 X 50	69.5	98	25.3	5 pcs	174



APRT50X32	50 X 32 X 50	69.5	98	25.3	5 pcs	175



APRT50X40	50 X 40 X 50	69.5	98	25.3	5 pcs	180
APRT63X20	63 X 20 X 63	87.7	119	31.8	1 pc	332
APRT63X25	63 X 25 X 63	87.7	119	31.8	1 pc	332
APRT63X32	63 X 32 X 63	87.7	119	31.8	1 pc	330
APRT63X40	63 X 40 X 63	87.7	119	31.8	1 pc	332
APRT63X50	63 X 50 X 63	87.7	119	31.8	1 pc	340
APRT75X32	75 X 32 X 75	100	138	37.8	1 pc	480
APRT75X40	75 X 40 X 75	100	138	37.8	1 pc	479
APRT75X50	75 X 50 X 75	100	138	37.8	1 pc	484
APRT75X63	75 X 63 X 75	100	138	37.8	1 pc	503
APRT90X40	90 X 40 X 90	119.6	162	45.3	1 pc	800
APRT90X50	90 X 50 X 90	119.6	162	45.3	1 pc	805
APRT90X63	90 X 63 X 90	119.6	162	45.3	1 pc	808
