uPVC A/G Soil & Waste Pipes & Fittings

UPVC Drainage A/G Soil & Waste pipes / fittings as per BS EN 1329 ( Supersedes BS 4514 and BS BS 5255)
Pipes : 32mm, 36mm (11/4”) to 315mm (12”), Plain ended, Solvent cement or Rubber Ring socketed (Push fit) ends
Fittings : 36mm (11/4”) to 200mm (8”), Solvent cement or Rubber Ring socketed (Push fit) ends
Fittings : 250mm to 315 mm
Brands : “ATLAS” or “ FLOWTECH”
Quality Mark : BSI Kite Mark as per BS EN 1329
Color: Light Grey

Item Code	Nominal Size DN/OD	Standard	Joints	Type	Mean Outside Dia(D1)		Wall Thickness
Item Code	Nominal Size DN/OD	Standard	Joints	Type	min	max	min	max
FDPL 1.25X4	36mm	BS 5255	P/E	B (without KM)	36.2	36.5	1.8	2.2
FDPL 1.25X3.0X4	36mm	BS EN 1329-1	P/E	B	36.2	36.5	3	3.5
FDPL 1.25X4	43 mm	BS 5255	P/E	B (without KM)	42.8	43.1	1.9	2.3
FDPL 1.5X3.0X4	43 mm	BS EN 1329-1	P/E	B	42.8	43.1	3	3.5
FDPL2X4	56mm	BS 5255	P/E	B (without KM)	55.8	56.1	2	2.4
FDPL2X3.0X4	56mm	BS EN 1329-1	P/E	B	55.8	56.1	3	3.5
FDPL3X5.8	82 mm	BS EN 1329-1	P/E	B	82	82.3	3	3.5
FDSL3X5.8	82 mm	BS EN 1329-1	S/S	B	82	82.3	3	3.5
FDRL3X5.8	82 mm	BS EN 1329-1	R/R	B	82	82.3	3	3.5
FDPL4X5.8	110 mm	BS EN 1329-1	P/E	B	110	110.3	3.2	3.8
FDSL4X5.8	110 mm	BS EN 1329-1	S/S	B	110	110.3	3.2	3.8
FDRL4X5.8	110 mm	BS EN 1329-1	R/R	B	110	110.3	3.2	3.8
FDPL6X5.8B	160mm	BS EN 1329-1	P/E	B	160	160.4	3.2	3.8
FDSL6X5.8B	160mm	BS EN 1329-1	S/S	B	160	160.4	3.2	3.8
FDRL6X5.8	160mm	BS EN 1329-1	R/R	B	160	160.4	3.2	3.8
FDPL6X5.8BD	160mm	BS EN 1329-1	P/E	BD	160	160.4	4	4.6
FDSL6X5.8BD	160mm	BS EN 1329-1	S/S	BD	160	160.4	4	4.6
FDRL6X4X5.8B D	160mm	BS EN 1329-1	R/R	BD	160	160.4	4	4.6
FDPL8X5.8B	200mm	BS EN 1329-1	P/E	B	200	200.5	3.9	4.5
FDSL8X5.8B	200mm	BS EN 1329-1	S/S	B	200	200.5	3.9	4.5
FDRL8X5.8	200mm	BS EN 1329-1	R/R	B	200	200.5	3.9	4.5
FDPL8X5.8BD	200mm	BS EN 1329-1	P/E	BD	200	200.5	4.9	5.6
FDS L8X5. 8B D	200mm	BS EN 1329-1	S/S	BD	200	200.5	4.9	5.6
FDRL8X4.9X5.8BD	200mm	BS EN 1329-1	R/R	BD	200	200.5	4.9	5.6
FDPL 10X5.8B	250mm	BS EN 1329-1	P/E	B	250	250.5	4.9	5.6
FDSL 1 0X5 .8B	250mm	BS EN 1329-1	S/S	B	250	250.5	4.9	5.6
FDRL 10X5.8B	250mm	BS EN 1329-1	R/R	B	250	250.5	4.9	5.6
FDPL 1 0X5.8B D	250mm	BS EN 1329-1	P/E	BD	250	250.5	6.2	7.1
FDSL10X5.8BD	250mm	BS EN 1329-1	S/S	BD	250	250.5	6.2	7.1
FDRL 10X5.8BD	250mm	BS EN 1329-1	R/R	BD	250	250.5	6.2	7.1
FDPL 12X5.8SN4	315 mm	BS EN 1329-1	P/E	B	315	315.6	6.2	7.1
FDRL 12X5.8SN4	315 mm	BS EN 1329-1	R/R	B	315	315.6	6.2	7.1

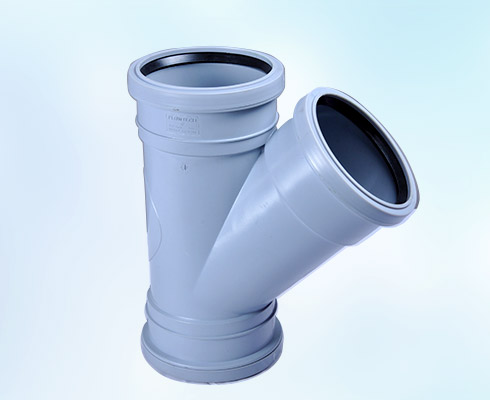

Rubber Ring Type
Size	D	DI	L
36mm (1 1/4")	36	-	25
40mm	40	-	27
50mm	50	-	31
43mm (1 1/2")	43	-	26
56mm (2")	56	-	28.5
75mm (2 1/2")	75	-	25
82mm (3")	82	-	26
110mm (4")	110	-	40
160mm (6")	160	-	60
200mm (8")	200	-	61

Solvent Type
Size	D	DI	L
36mm (1 1/4")	36	-	18
40mm	40	-	27
50mm	50	-	31
43mm (1 1/2")	43	-	26
56mm (2")	56	-	28.5
75mm (2 1/2")	75	-	25
82mm (3")	82	-	26
110mm (4")	110	-	40
160mm (6")	160	-	60
200mm (8")	200	-	61

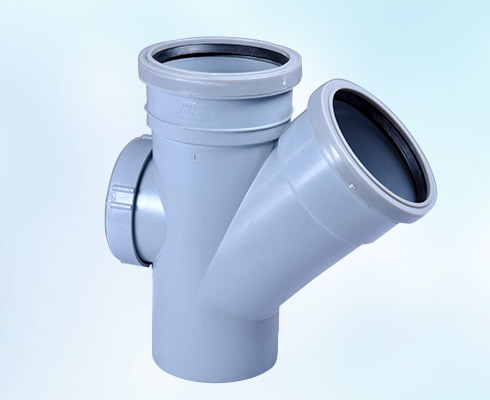

Rubber Ring Type
Size	D	DI	L
36mm (1 1/4")	36		25
40mm	40		28
50mm	50		30
43mm (1 1/2")	43		27
56mm (2")	56		30.5
75mm (2 1/2")	75		25
82mm (3")	82		26
110mm (4")	110		40
160mm (6")	160		60
200mm (8")	200		61

Solvent Type
Size	D	DI	L
36mm (1 1/4")	36		18
40mm	40		28
50mm	50		30
43mm (1 1/2")	43		27
56mm (2")	56		30.5
75mm (2 1/2")	75		45
82mm (3")	82		48.5
110mm (4")	110		51
160mm (6")	160		60
200mm (8")	200		61

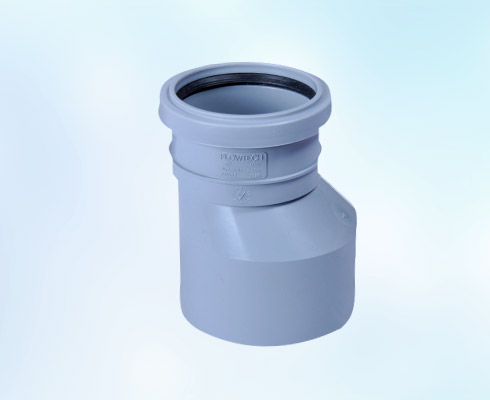

Rubber Ring Type
Size	D	DI	L
56x43mm (2x11/2")	56	43	27
75x50mm	75	50	40
82x56mm (3x2")	82	56	43
110x56mm (4x2")	110	56	43
110x75mm (4x2 1/2")	110	75	48
110x82mm (4x3")	110	82	48
160x110mm (6x4")	160	110	58
200x160mm (8x6")	200	160	60

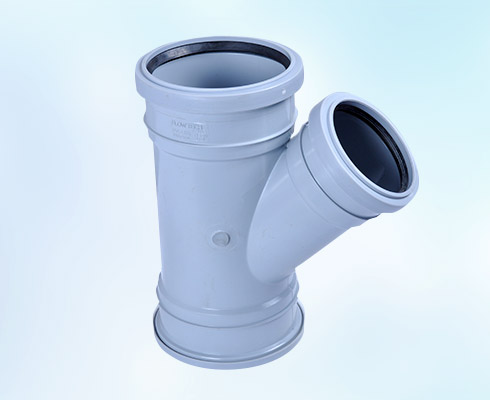

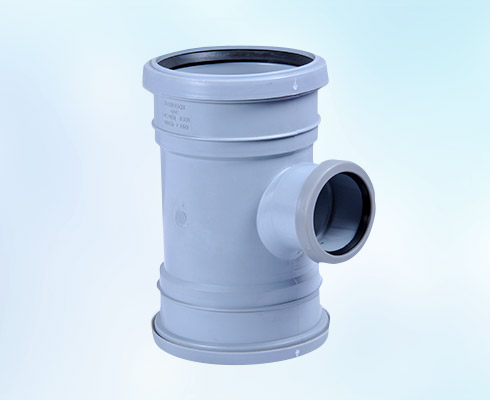

Rubber Ring Type
Size	D	DI	L
50x40mm	50	40	30
56x43mm (2x1 1/2")	56	43	27
56x32mm	56	32	27
75x50mm	75	50	40
75x40mm	75	40	40
82x56mm (3x2")	82	56	43
110x56mm (4x2")	110	56	48
110x75mm (4x2 1/2")	110	75	48
110x82mm (4x3")	110	82	48
160x110mm (6x4")	160	110	58
160x82mm (6x3")	160	82	58
160x75mm (6x2 1/2")	160	75	58

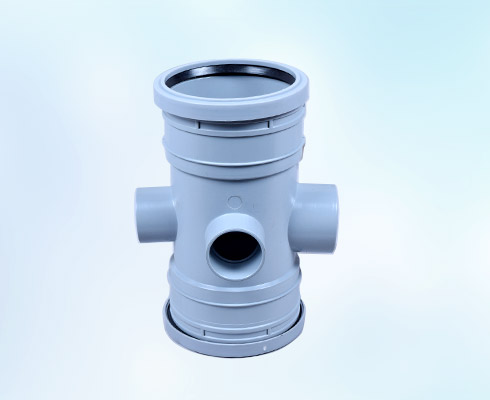

Rubber Ring Type
Size	D	DI	L	Seal
110x82x56mm (4x3x2")	110	82/56	135	50
110x82x43mm (4x3x1 1/2")	110	82/43	135	50
160x110x50mm	160	110/50	171	70

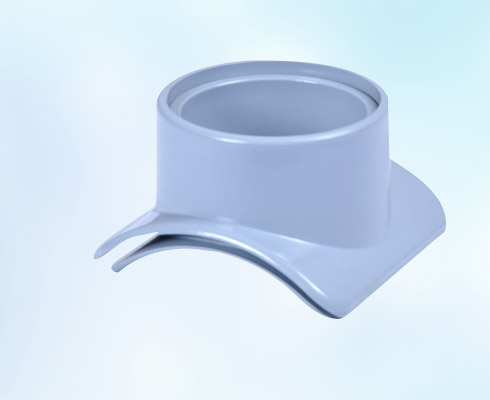

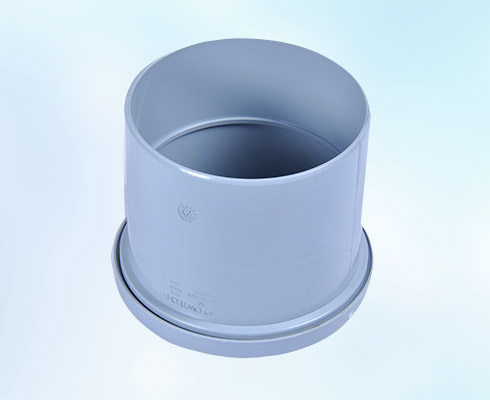

Rubber Ring Type
Size	D	DI	L
75mm ( 2 1/2)	75		25
82mm (3")	82		26
110mm (4")	110		40
160mm (6")	160		60
200mm (8")	200		61
